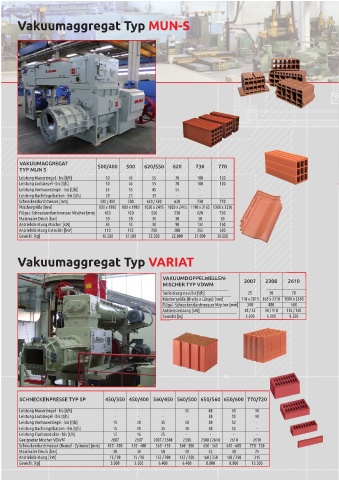

Vakuumaggregat Typ MUN-S Dachziegelpresse DR/6
VAKUUMAGGREGAT
TYP MUN S 500/400 500 620/550 620 730 770 DACHZIEGELPRESSEN M6-720 DR6-850 DR6-1150 DR6-1600 DR6-2000 DR6-2400
Leistung Mauerziegel - bis [t/h] 30 45 55 70 100 120 24 mech. 24 mech. 22 mech. 20 mech. 20 mech.
Leistung Lochziegel - bis [t/h] 30 45 55 70 100 120 Max. Hubzahl bis [pro/min] 20 18 hydr. 18 hydr. 18 hydr. 18 hydr. 18 hydr.
Leistung Vormauerziegel - bis [t/h] 25 35 45 55 - - Anzahl Oberformen 1 1 2 2 / 3 / 4 3 / 4 / 5 3 / 4 / 5
Leistung Dachziegelbatzen - bis [t/h] 20 25 35 - - - Anzahl Unterformen 1 6 12 12 / 18 / 24 18 / 24 / 30 18 / 24 / 30
Schneckendurchmesser [mm] 500 / 400 500 620 / 550 620 730 770 Trommel ächen 6 6 6 6 6 6
Mischergröße [mm] 800 x 1980 800 x 1980 1020 x 2415 1020 x 2415 1190 x 3165 1300 x 3220 Trommelgröße [mm] 627 x 720 620 x 850 620 x 1150 650 x 1600 650 x 2000 650 x 2400
Flügel- Schneckendurchmesser Mischer [mm] 450 450 550 550 620 730 Presskraft [t] 60 80 240 300 400 400
Maximaler Druck [bar] 30 30 30 30 30 30 Max. Presshub [mm] 130 130 140 140 140 140
Antriebsleistung Mischer [kW] 45 45 90 90 132 160 Antriebsleistung [kW] 7,5 15 22 45 55 55
Antriebsleistung Extruder [kW] 110 132 200 200 355 500 Gewicht (ohne Formen) [kg] 7.000 18.000 36.000 40.000 52.000 60.000
Gewicht [kg] 16.500 17.500 22.000 22.000 27.000 38.000
Vakuumaggregat Typ VARIAT Zubehörpresse DTP
VAKUUMDOPPELWELLEN- 2007 2308 2610
MISCHER TYP VDWM
Tonleistung nass bis [t/h] 25 50 70
Mischergröße (Breite x Länge) [mm] 710 x 2015 865 x 2310 1000 x 2650
Flügel- Schneckendurchmesser Mischer [mm] 390 480 580
Antriebsleistung [kW] 45 / 55 90 / 110 110 / 160
Gewicht [kg] 3.600 6.000 8.500
ZUBEHÖRPRESSEN F1 F3 STP 100 DTP 160 DTP 200
SCHNECKENPRESSE TYP SP 450/350 450/400 560/450 560/500 650/560 650/600 770/720
Max. Hubzahl bis [pro/min] 3,3 8,3 7,5 14 14
Leistung Mauerziegel - bis [t/h] - - - 45 60 65 90 Kapazität [Stk/h] 200 500 450 840 840
Leistung Lochziegel - bis [t/h] - - - - 50 55 90
1
1
1
Leistung Vormauerziegel - bis [t/h] 15 20 35 40 50 52 - Anzahl Oberform 1 2 1 2 1 / 2 3 / 4 3 / 4
Anzahl Unterformen
Leistung Dachziegelbatzen - bis [t/h] 15 20 35 40 50 55 - Durchmesser Drehtisch [mm] 1400 1400 1830 2000 2400
Leistung Flachprodukte - bis [t/h] 12 16 25 - - - - Presskraft [t] 50 80 100 160 200
Geeigneter Mischer VDWM 2007 2007 2007 / 2308 2308 2308 / 2610 2610 2610 Max. Formengröße [mm] 550 x 600 550 x 600 550 x 600 500 x 730 750 x 820
Schneckendurchmesser (Rumpf - Zylinder) [mm] 450 - 400 450 - 400 560 - 450 560 - 500 650 - 560 650 - 600 770 - 720 Max. Formpakethöhe [mm] 280 245 300 300 300
Maximaler Druck [bar] 30 30 50 30 35 30 25 Max. Presshub [mm] 300 300 300 340 340
Antriebsleistung [kW] 75 / 90 75 / 90 132 / 200 132 / 200 160 / 250 160 / 250 315 Antriebsleistung (elektrisch + hydraulisch) [kW] 11 30 75 90 130
Gewicht [kg] 5.000 5.000 6.400 6.400 8.800 8.800 13.000
Gewicht (ohne Formen) [kg] 5.000 7.500 7.000 12.000 15.000
