Entwicklungen für die Zukunft

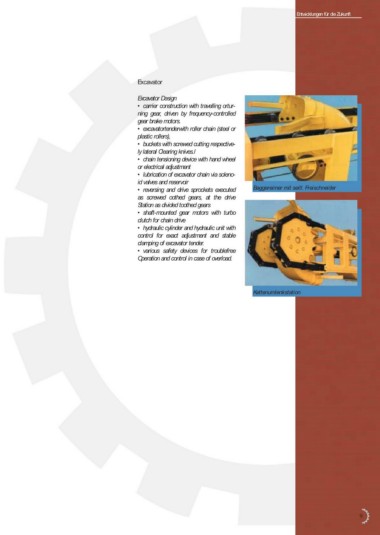

Excavator Baggereimer mit seitl. Freischneider
Excavator Design
• carrier construction with travelling ortur-
ning gear, driven by frequency-controlled
gear brake motors.
• excavatortenderwith roller chain (steel or
plastic rollers),
• buckets with screwed cutting respective-
ly lateral Clearing knives.l
• chain tensioning device with hand wheel
or electrical adjustment
• lubrication of excavator chain via soleno-
id valves and reservoir
• reversing and drive sprockets executed
as screwed oothed gears, at the drive
Station as divided toothed gears
• shaft-mounted gear motors with turbo
clutch for chain drive
• hydraulic cylinder and hydraulic unit with
control for exact adjustment and stable
clamping of excavator tender.
• various safety devices for troublefree
Operation and control in case of overload.
Kettenumlenkstation
