P. 10

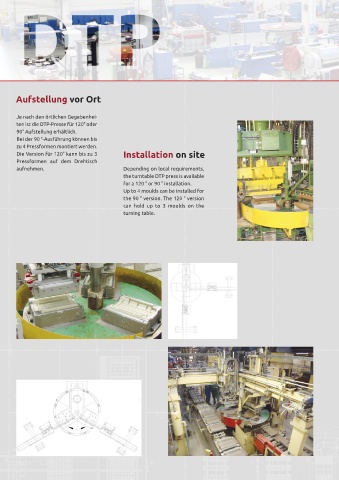

Aufstellung vor Ort
Anzahl Hübe/min
Number of strokes/minute
Je nach den örtlichen Gegebenhei-
ten ist die DTP-Presse für 120° oder 6 8 10 12 14
90° Aufstellung erhältlich.
Bei der 90 °-Ausführung können bis Dachziegel/Std.* 288 384 480 576 672
zu 4 Pressformen montiert werden. Tiles per hour
Die Version für 120° kann bis zu 3 Installation on site Dachziegel pro
Pressformen auf dem Drehtisch Schicht (8 Std.) 2304 3072 3840 4608 5376
aufnehmen. Depending on local requirements, Tiles per 8 hour shift
the turntable DTP press is available
for a 120 ° or 90 ° installation. Dachziegel pro Jahr 1520640 2027520 253440 3041280 3548160
Up to 4 moulds can be installed for Tiles per year
the 90 ° version. The 120 ° version
can hold up to 3 moulds on the
turning table. Dachziegelmuster
Sample tile
* Wirkungsgrad / efficiency 80%
ZUBEHÖRPRESSEN F1 F3 STP 100 DTP 160 DTP 200
PRESS FOR ACCESSORY TILES
Max. Hubzahl bis [pro/min] 3,3 8,3 7,5 14 14
Pressing movements up to [s/min]
Kapazität [Stk/h] 200 500 450 840 840
Output [pcs/h]
Anzahl Oberform 1 1 1 1 1
Upper moulds [n°]
Anzahl Unterformen 2 2 1 / 2 3 / 4 3 / 4
Lower moulds [n°]
Durchmesser Drehtisch [mm] 1400 1400 1830 2000 2400
Diameter of rotating table [mm]
Presskraft [t] 50 80 100 160 200
Pressing force [t]
Max. Formengröße [mm] 550 x 600 550 x 600 550 x 600 550 x 730 750 x 820
Max. moulds size [mm]
Max. Formpakethöhe [mm] 280 245 300 300 300
Max. height of mould package [mm]
Max. Presshub [mm] 300 300 300 340 340
Max. stroke of pressing stroke [mm]
Antriebsleistung (elektrisch + hydraulisch) [kW] 11 30 75 90 130
Installed power (electrical + hydraulic) [kW]
Gewicht (ohne Formen) [kg] 5.000 7.500 7.000 12.000 15.000
Weight (without moulds) [kg]
